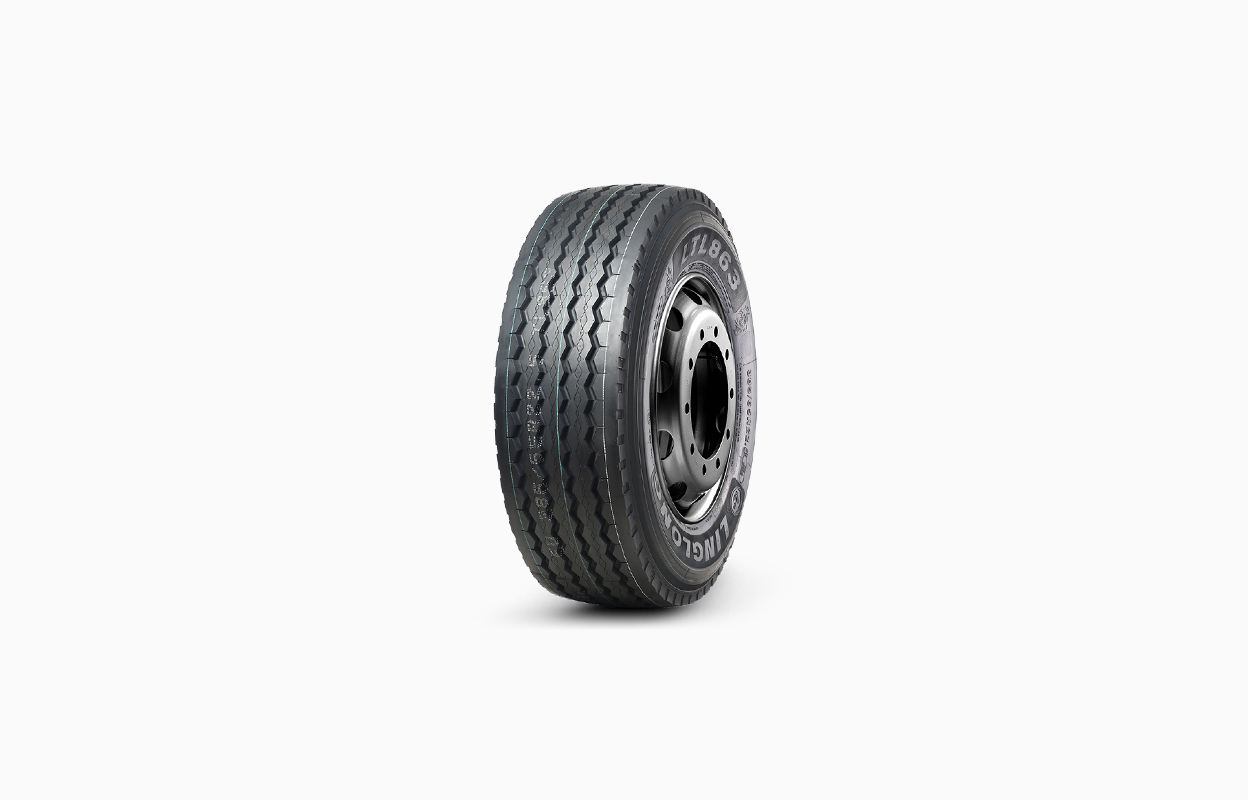

LTL863
| Size | Ply Rating | Load Index | Speed Symbols | Standard Rim |
Max Load and Inflated Pressure | Overall Diameter (mm) | Section Width (mm) |
Tread Depth (mm) |
Operation Norm | |||
| Dual | Single | |||||||||||
| kg | kPa | kg | kPa | |||||||||
| 385/55R22.5 | 18 | 158 | K | 12.25 | ------- | --- | 4250 | 850 | 996 | 386 | 16.5 | ETRTO |
| 385/55R22.5 | 20 | 160(158) | J(L) | 12.25 | ------- | --- | 4500 | 900 | 996 | 386 | 16.5 | ETRTO |
| 385/65R22.5 | 18 | 158 | K | 11.75 | ------- | --- | 4250 | 850 | 1072 | 389 | 16.5 | ETRTO |
| 385/65R22.5 | 20 | 160(158) | J(L) | 11.75 | ------- | --- | 4500 | 900 | 1072 | 389 | 16.5 | ETRTO |
| 385/65R22.5 | 24 | 164 | J | 11.75 | ------- | --- | 5000 | 900 | 1072 | 389 | 16.5 | ETRTO |
| 425/65R22.5 | 18 | 162 | K | 12.25 | ------- | --- | 4750 | 760 | 1124 | 422 | 17.5 | TRA |
| 425/65R22.5 | 20 | 165 | J/K | 13.00 | ------- | --- | 5150 | 825 | 1124 | 430 | 17.5 | ETRTO |
| 445/65R22.5 | 20 | 168 | J/K | 13.00 | ------- | --- | 5600 | 830 | 1150 | 444 | 18.0 | TRA |
| 445/65R22.5 | 20 | 169 | J/K | 14.00 | ------- | --- | 5800 | 900 | 1150 | 454 | 18.0 | ETRTO |
