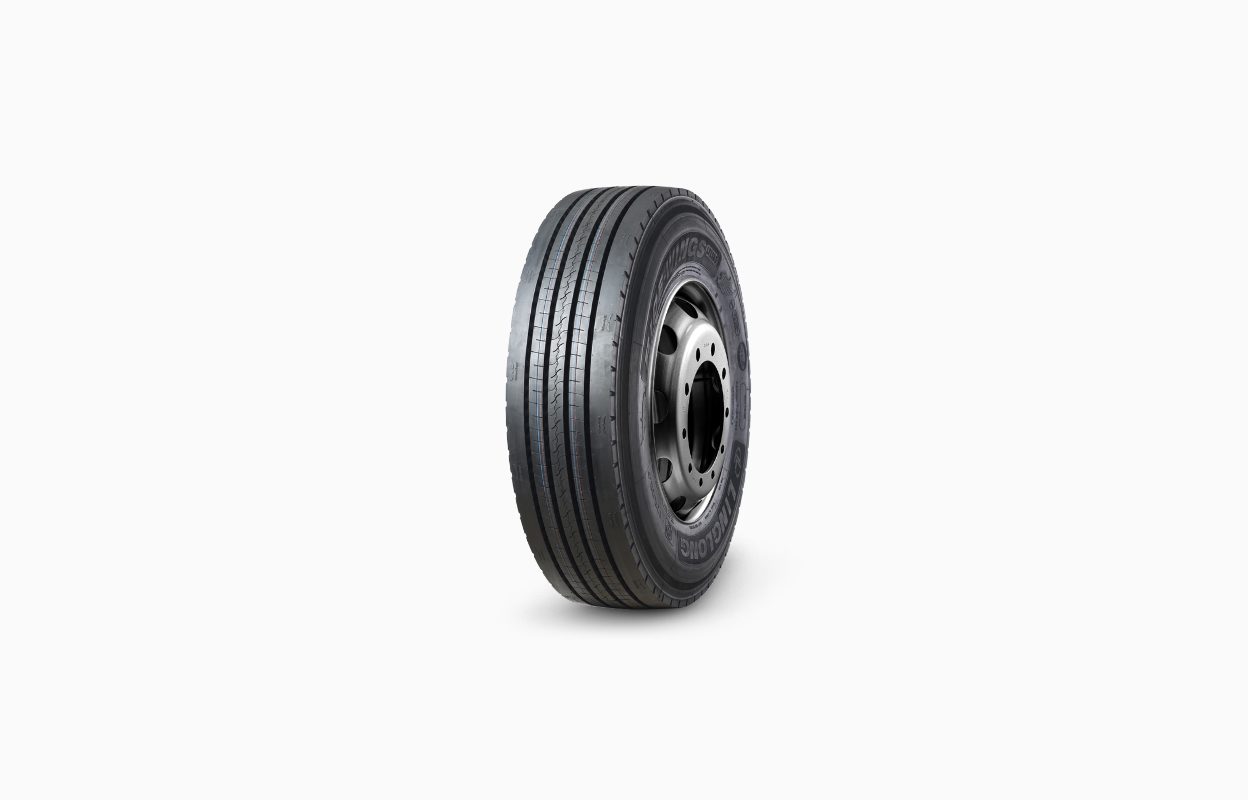

LFL185
| Size | Ply Rating | Load Index | Speed Symbols | Standard Rim |
Max Load and Inflated Pressure | Overall Diameter (mm) | Section Width (mm) |
Tread Depth (mm) |
Operation Norm | |||
| Dual | Single | |||||||||||
| kg | kPa | kg | kPa | |||||||||
| 11 R22.5 | 16 | 146/143 | M | 8.25 | 2725 | 830 | 3000 | 830 | 1054 | 279 | 16.5 | TRA |
| 11R22.5 | 16 | 148/145 | M | 8.25 | 2900 | 850 | 3150 | 850 | 1054 | 279 | 16.5 | ETRTO |
| 12R22.5 | 16 | 152/148 | L | 9.00 | 3150 | 850 | 3550 | 850 | 1084 | 300 | 17.0 | ETRTO |
| 12R22.5 | 18 | 152/149 | L | 9.00 | 3250 | 930 | 3550 | 930 | 1085 | 300 | 17.0 | GB |
| 295/80R22.5 | 16 | 152/148 | M | 9.00 | 3150 | 850 | 3550 | 850 | 1044 | 298 | 17.0 | ETRTO |
| 295/80R22.5 | 18 | 152/149 | M | 9.00 | 3250 | 900 | 3550 | 900 | 1044 | 298 | 17.0 | GB |
| 315/80R22.5 | 18 | 154/150 | M | 9.00 | 3350 | 825 | 3750 | 825 | 1076 | 312 | 17.0 | ETRTO |
| 315/80R22.5 | 20 | 156/150 | L | 9.00 | 3350 | 850 | 4000 | 850 | 1076 | 312 | 17.0 | ETRTO |
